Description

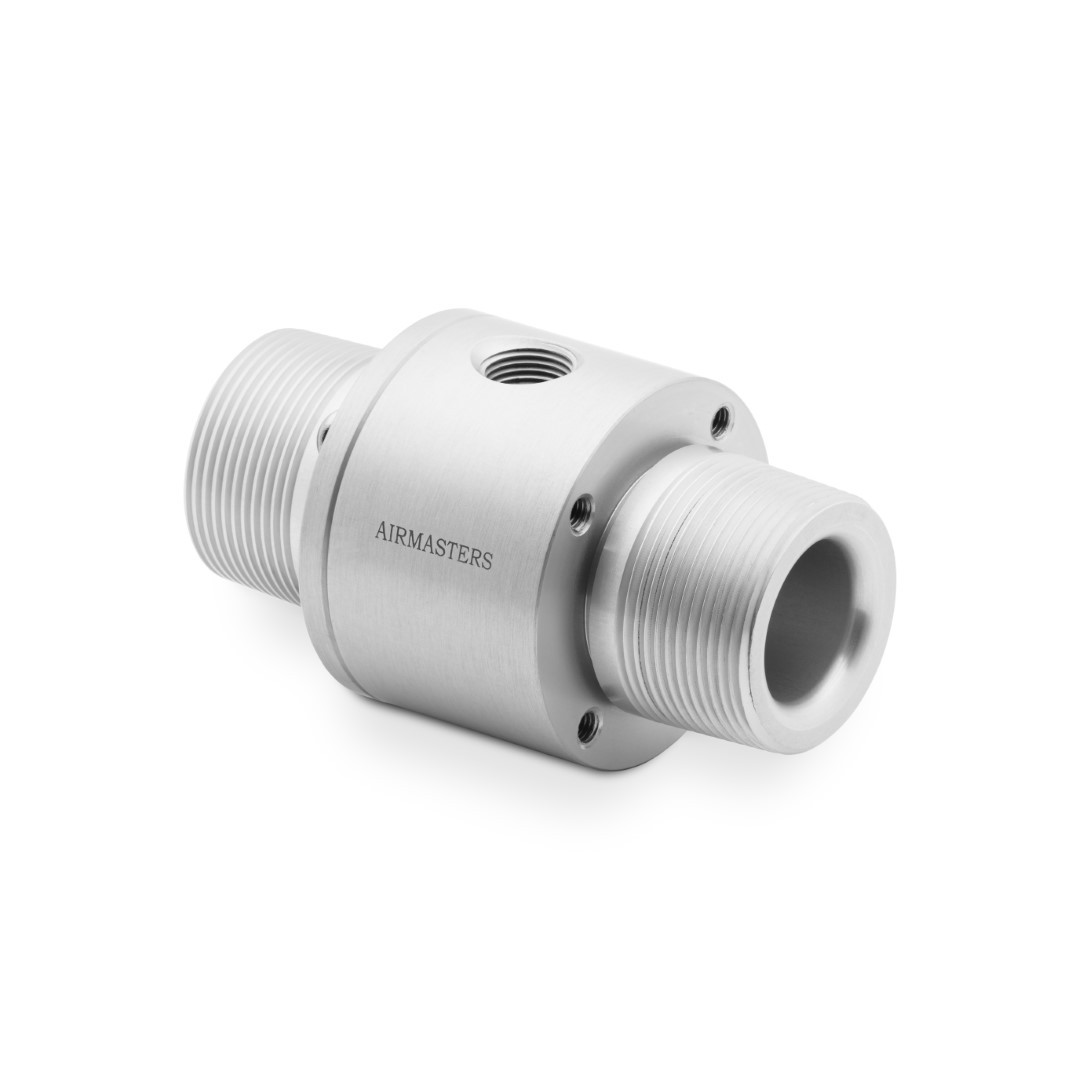

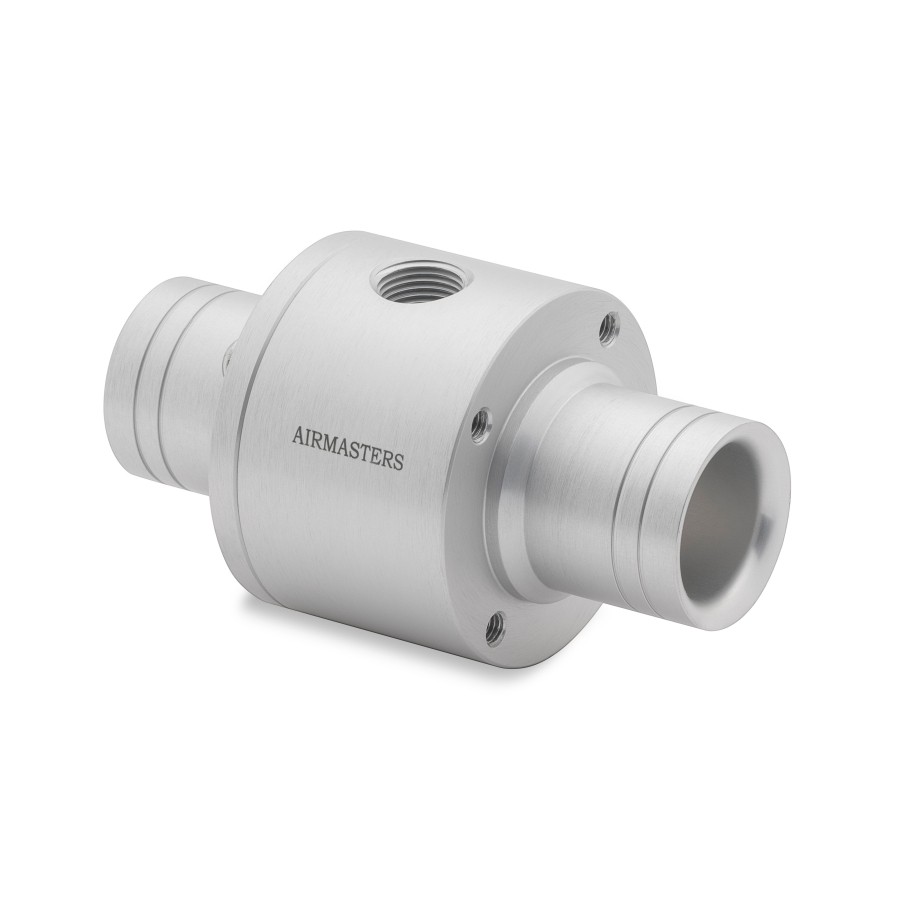

Nex Flow Ring-Vac Conveyor is available in anodized aluminum or stainless steel. Simply clamp a standard hose to each end of the Ring-Vac to create this conveying system. Threaded pipe connections are also available. There are no moving parts which lead to maintenance free operation while capacity and flow can be controlled with a pressure regulator.
| REFRENCE (aluminium, stainless, threaded) | HOSE DIAMETER mm (inches) | INTERNAL DIAMETER (mm) | AIR CONSUMPTION (5,5 bar) | VACUUM (inch) |
|---|---|---|---|---|
| 39998 39998S | 9,5 (0.375”) | 0.19″ (5.0) | 158 l/min | -120 |
| 39999 39999S | 12,7 (0.50″) | 0.31″ (8.0) | 198 l/min | -100 |
| 30000 30000S | 19,0 (0.75″) | 0.55″ (14.0) | 303 l/min | -72 |
| 30001 30001S 30001T | 25,4 (1.00”) | 0.75” (19.0) | 415 l/min | -42 |
| 30002 30002S 30002T | 31,8 (1.25”) | 1.00” (25.4) | 730 l/min | -42 |
| 30003 30003S 30003T | 38,1 (1.50”) | 1.125” (28.6) | 932 l/min | -39 |
| 30004 30004S 30004T | 50,8 (2.00”) | 1.75” (44.5) | 1270 l/min | -28 |
| 30005 30005S | 63,5 (2.5”) | 2.19” (55.6) | 1655 l/min | -23,5 |
| 30006 30006S | 76,2 (3.0”) | 2.68” (68.0) | 1940 l/min | -14,7 |
| 30007 30007S | 101,6 (4.0”) | 3.7” (93.6) | 2690 l/min | -13,6 |
| 30008 30008S | 127,0 (5.0”) | 4.7” (119.0) | 3625 l/min | -10,5 |
