Description
AIRMASTERS air amplifiers utilize the “Coanda” effect, which allows the external air from the surrounding space to be included in the compressed air blowing. This provides efficient blowing with a low compressed air consumption. The amplifier is up to 17 (depending on the model), meaning that one liter of compressed air can produce 17 liters of air flow. AIRMASTERS adjustable air amplifiers are made of anodized aluminum or stainless steel. The aluminum model is lightweight, compact and affordable. The stainless steel model can be used in high temperatures, corrosive environments and in food and pharmaceutical applications.
|

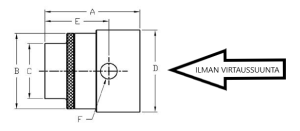

Reference
(aluminium) |
Intake C
|
Outlet D
|
Air consumption
(5,5 bar) |
Amplification ratio
|
|
AIR-AMP00
|
19,0 mm
|
38,0 mm | 166 l/min | 15:1 |
|
AIR-AMP01
|
31,8 mm
|
50,3 mm |
333 l/min
|
15:1
|
| AIR-AMP02 | 50,8 mm | 75,7 mm |
616 l/min
|
16:1
|
|
AIR-AMP03
|
101,6 mm
|
140,0 mm |
1066 l/min
|
17:1
|
