Description
AIRMASTERS Air knife for powerful blowing!
The AIRMASTERS air knife has been developed to perfection in its aerodynamic design. The air knife produces an efficient, uniform and spatula-like blow, which creates a pneumatic scraping effect without mechanical contact.
The AIRMASTERS air knife has the highest possible flow amplification factor and is extremely quiet.
All AIRMASTERS air knives utilize the “Coanda” effect, which allows outside air to be added to the air flow in addition to the compressed air. This results in efficient and quiet blowing with minimal compressed air consumption. AIRMASTERS air knives use only 30% of the compressed air compared to open pipes or air deflectors.
|
REFERENCE
(anodized aluminium) |
LENGTH mm
|
LENGTH (inches)
|
AIR CONSUMPTION (5 bar) |
BLOW SPEED (152 mm distance, 5 bar) |
BLOW FORCE (5 bar)
|
AIR INLETS back (end)
|
|
02-51MM
|
51
|
2”
|
142 Nl/min
|
57 m/s
|
1,4 N
|
1 (0)
|
|
03-75MM |
75
|
3”
|
212 Nl/min
|
57 m/s
|
2,1 N
|
1 (0)
|
|
04-100MM
|
100
|
4”
|
212 Nl/min
|
57 m/s
|
3,7 N
|
1 (0)
|
|
06-152MM
|
152
|
6”
|
423 Nl/min
|
57 m/s
|
4,2 N
|
1 (0)
|
|
09-229MM
|
229
|
9”
|
633 Nl/min
|
57 m/s
|
6,3 N
|
2 (2)
|
|
12-305MM |
305 |
12” |
850 Nl/min |
57 m/s |
8,5 N |
2 (2) |
|
15-381MM
|
381
|
15”
|
1050 Nl/min
|
57 m/s
|
10,5 N
|
2 (2)
|
|
16-400MM
|
400
|
16”
|
1083 Nl/min
|
57 m/s
|
12,0 N
|
2 (2)
|
|
18-457MM |
457
|
18”
|
1266 Nl/min
|
57 m/s
|
12,6 N
|
2 (2)
|
|
20-500MM
|
500
|
20”
|
1449 Nl/min
|
57 m/s
|
14,5 N
|
2 (2)
|
|
24-610MM
|
600
|
24”
|
1683 Nl/min
|
57 m/s
|
17,0 N
|
2 (2)
|
|
27-700MM
|
700
|
27”
|
2000 Nl/min
|
57 m/s
|
22,0 N
|
2 (2)
|
|
30-762MM |
762 |
30” |
2116 Nl/min |
57 m/s |
24,0 N |
2 (2)
|
|
36-914MM
|
914
|
36”
|
2532 Nl/min
|
57 m/s
|
25,0 N
|
3 (2)
|
|
42-1067MM
|
1067
|
42”
|
2965 Nl/min
|
57 m/s
|
29,4 N
|
3 (2)
|
|
48-1219MM
|
1219
|
48”
|
3382 Nl/min
|
57 m/s
|
33,0 N
|
3 (2)
|
|
54-1372MM
|
1372
|
54”
|
3815 Nl/min
|
57 m/s
|
38,0 N
|
3 (2)
|
AIRMASTERS Air knife properties
- Material: anodized aluminum or stainless steel (also 316L)
- Heat resistance: aluminium 120°C ans 430°C stainless steel
- Made of anodized aluminum, hard anodized aluminum, 303/304 stainless or 316L stainless steel
- Full length laminar air flow
- Air inlets R1/4'' at the back and at both ends
- Uses only compressed air. No need for electricity
- Replaces open pipes with holes
- 40:1 air amplification ratio
- Instant on-off operation using a solenoid valve.
Advantages
- Longer service life in demanding conditions than uncoated air knives
- Saves compressed air
- Uniform full length blow pattern
- Maintenance free, safe to use.
Advantages compared to electric fans
- Compact, lightweight, portable
- Uses only compressed air, no electricity hazard
- No moving parts – no maintenance
- Quiet, sound level even below 67 dBA.
Applications
- Removal of excess oils, liquids, and dust from flat and curved surfaces
- Part drying after wash
- Conveyor cleaning
- Component or parts cooling
- Drying or cleaning of moving webs
- Environmental separation (air barriers)
- Set hot melt adhesives
- Bag opening in filling applications
- Pussien avaaminen täyttöä varten.

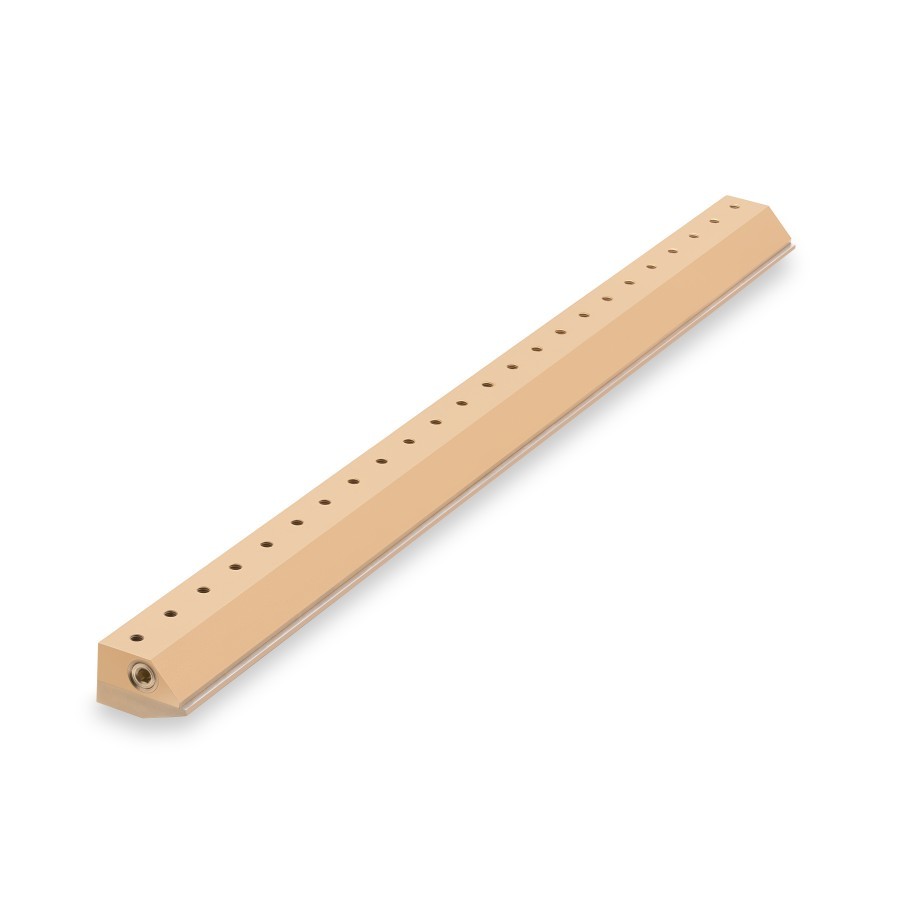

AIRMASTERS Air knife for powerful blowing!
All screws are stainless steel. The air knives come standard with 0.05 mm stainless steel adjustment plates to provide a precisely adjusted air gap. Additional adjustment plates are available to increase the blowing power if required.
Air knives, 6 different models
AIRMASTERS Air knife
- Basic model Air knife
- Air amplification ratio 40:1
- Material gold color anodized aluminium
- Our most popular model
- Standard lengths 51 - 1372 mm
- Heat resistance up to 430°C (stainless)
- In stock
- AIRMASTERS Air knife for powerful blowing!
AIRMASTERS+ Air knife
- Extremelly powerful blowing power
- Air amplification ratio 50:1
- Material blue color anodized aluminium
- Standard lengths 51 - 1372 mm
- Most sold lengths in stock at the factory.
Standard Air Knife
- Older model Air knife
- Air amplification ratio 30:1
- Material anodized aluminium or 304 stainless steel
- Lower cost model Air knife
- Standard lengths 76 – 914 mm
- Manufactured only to order.
Manifold mounted air nozzles
- For extreme blowing force
- Can be applied with any model of our air nozzles
- Standard models up to 4 nozzles, longer models by special order
- Material anodized aluminium or 304/316L stainless steel
- Heat resistance up to 430°C (depending of the model)
Hard anodized Air knife
- For mechanically abrasive applications
- Air amplification ratio 40:1
- Material black hard anodized 6061-T6 aluminium
- Available with R1/4” or 1/4” NPT air inlets
- Special order. Ask for a quote!
Ring Blade Air knife
- Uniform 360° blow around the object
- For cleaning and cooling of cables and tubes
- Material anodized aluminium or 304/316L stainless steel
- Heat resistance up to 430°C (depending of the model)
More reading about improving the energy efficiency of compressed air systems
https://www.sarlin.com/ajankohtaista/paineilman-energiatehokkuus-kuntoon-kokonaisuuden-hallinnalla
https://www.atlascopco.com/fi-fi/compressors/paineilman-perusteet/paineilmalaitteisto-energiatehokkuus
https://www.theseus.fi/bitstream/handle/10024/341634/Piilonen_Maija.pdf;jsessionid=6C415F25ADC6563A5A24246AAA3A364B?sequence=3
Compressed Air or Blowers?
For an appropriate blow off in cleaning or drying, the choice for using a blower system over a compressed air is not always so clear cut. It is not just energy use as a great deal of other factors also impact the decision. There is also built in bias from both compressed air system providers and blower system providers so this must be accounted for in evaluating which would be the best choice.
Salesmen’s talk
Blower sellers tend to compare the best aspects of a blower system in a best case scenario to the worst case scenario for compressed air, usually focusing entirely on energy cost to the exception of other factors, and even the actual pressure levels that need to be used in the application. Compressed air blow of providers tend to overstate the negative aspects of blowers, worst case for maintenance and noise, shutdown costs, and stretching the real limited shear force, such systems can obtain. Since most of all compressed air that is produced today (up to 70%) is still used for blow off applications, clearly there is a reason for using compressed air in many cases.
Which is the best system?
Several factors should be carefully considered for any blow-off application in choosing the best system. Each factor may have a greater or lesser weight over the other depending on the particular situation. They are as follows…
More: https://nexflow.com/wp-content/uploads/2020/07/Compressed-Air-or-Blowers.pdf
