Description
Pyöreä ilmaveitsi putkien ja kaapeleiden puhdistukseen ja jäähdyttämiseen!

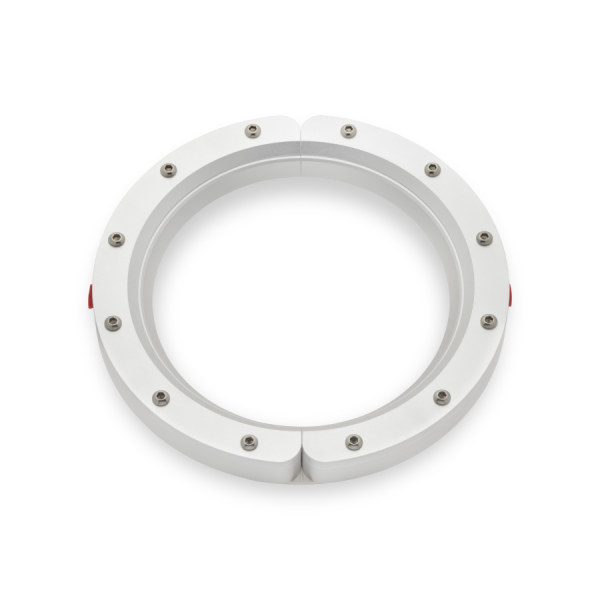

AIRMASTERS Ring Blade produces a “laminar” flow of air along its 360º angle using the “Coanda” effect. Ring Blade entrains a large volume of air from the surrounding area along with the small amount of compressed air to produce an output flow up to 30 times the compressed air input. The blow-off is angled against the direction of flow of the part to shear off moisture and dirt effectively, even for irregular shaped parts.

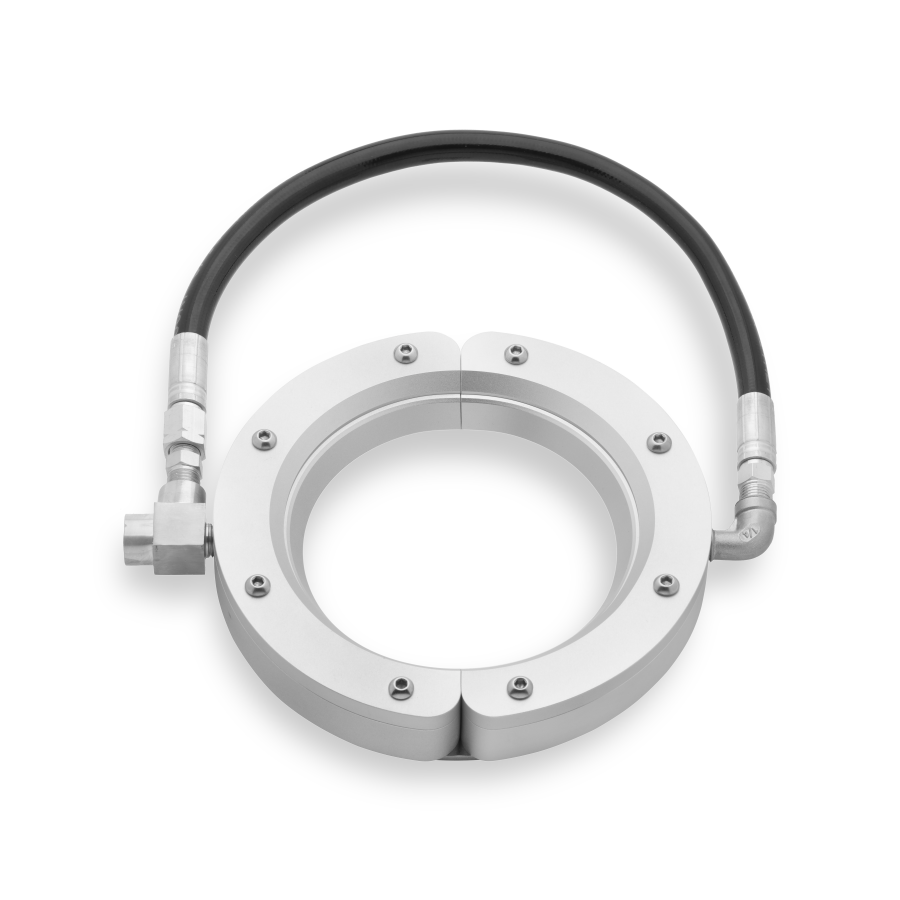

AIRMASTERS Ring blades are made of anodized aluminum or 304/316L stainless steel. The design and use of the quick-open structure are fast and easy.
REFERENCE
| ALUMIINI 66°C | 304 STAINLESS 430°C | 316L STAINLESS 430°C | INTERNAL DIAM. MM/INCHES |
AIR CONSUMPTION Nl/min (5 bar) |
|---|---|---|---|---|
| AIR-AW038 | – | – | 9 / 3/8” | 212 |
| AIR-AW00 | AIR-AW00S | AIR-AW00-316L | 12,5 / 0,5” | 249 |
| AIR-AW01 | AIR-AW01S | AIR-AW01-316L | 25 / 1” | 533 |
| AIR-AW15 | – | – | 40 / 1,6” | 633 |
| AIR-AW02 | AIR-AW02S | AIR-AW02-316L | 51 / 2” | 700 |
| AIR-AW03 | AIR-AW03S | AIR-AW03-316L | 76 / 3” | 833 |
| AIR-AW04 | AIR-AW04S | AIR-AW04-316L | 102 / 4” | 1249 |
| AIR-AW05 | AIR-AW05S | AIR-AW05-316L | 125 / 5” | 1500 |
| AIR-AW06 | AIR-AW06S | AIR-AW06-316L | 152 / 6” | 2000 |
| AIR-AW07 | AIR-AW07S | AIR-AW07-316L | 178 / 7” | 2167 |
| AIR-AW09 | AIR-AW09S | AIR-AW09-316L | 229 / 9” | 2749 |
| AIR-AW11 | AIR-AW11S | AIR-AW11-316L | 279 / 11” | 3382 |
Air knives, 6 different models
AIRMASTERS Air knife
- Basic model Air knife
- Air amplification ratio 40:1
- Material gold color anodized aluminium
- Our most popular model
- Standard lengths 51 - 1372 mm
- Heat resistance up to 430°C (stainless)
- In stock.
AIRMASTERS+ Air knife
- Extremelly powerful blowing power
- Air amplification ratio 50:1
- Material blue color anodized aluminium
- Standard lengths 51 - 1372 mm
- Most sold lengths in stock at the factory.
Standard Air Knife
- Older model Air knife
- Air amplification ratio 30:1
- Material anodized aluminium or 304 stainless steel
- Lower cost model Air knife
- Standard lengths 76 – 914 mm
- Manufactured only to order.
Manifold mounted air nozzles
- For extreme blowing force
- Can be applied with any model of our air nozzles
- Standard models up to 4 nozzles, longer models by special order
- Material anodized aluminium or 304/316L stainless steel
- Heat resistance up to 430°C (depending of the model)
Hard anodized Air knife
- For mechanically abrasive applications
- Air amplification ratio 40:1
- Material black hard anodized 6061-T6 aluminium
- Available with R1/4” or 1/4” NPT air inlets
- Special order. Ask for a quote!
Ring Blade Air knife
- Uniform 360° blow around the object
- For cleaning and cooling of cables and tubes
- Material anodized aluminium or 304/316L stainless steel
- Heat resistance up to 430°C (stainless)
- Pyöreä ilmaveitsi putkien ja kaapeleiden puhdistukseen ja jäähdyttämiseen!
